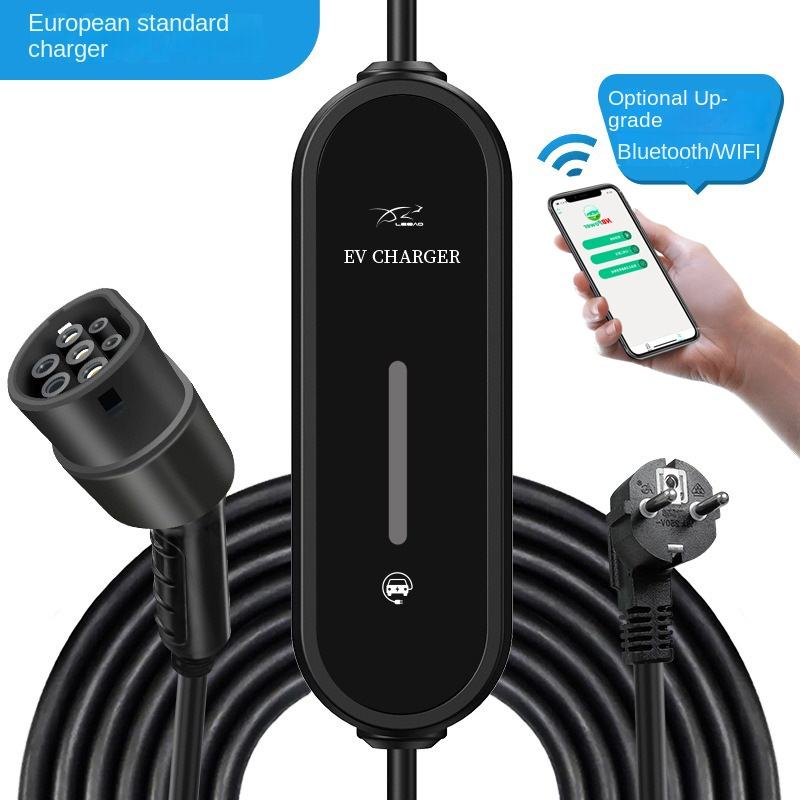

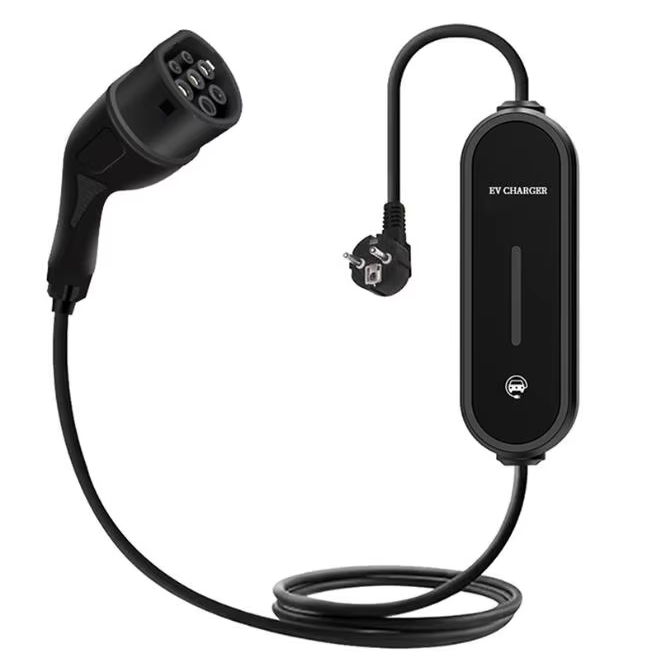

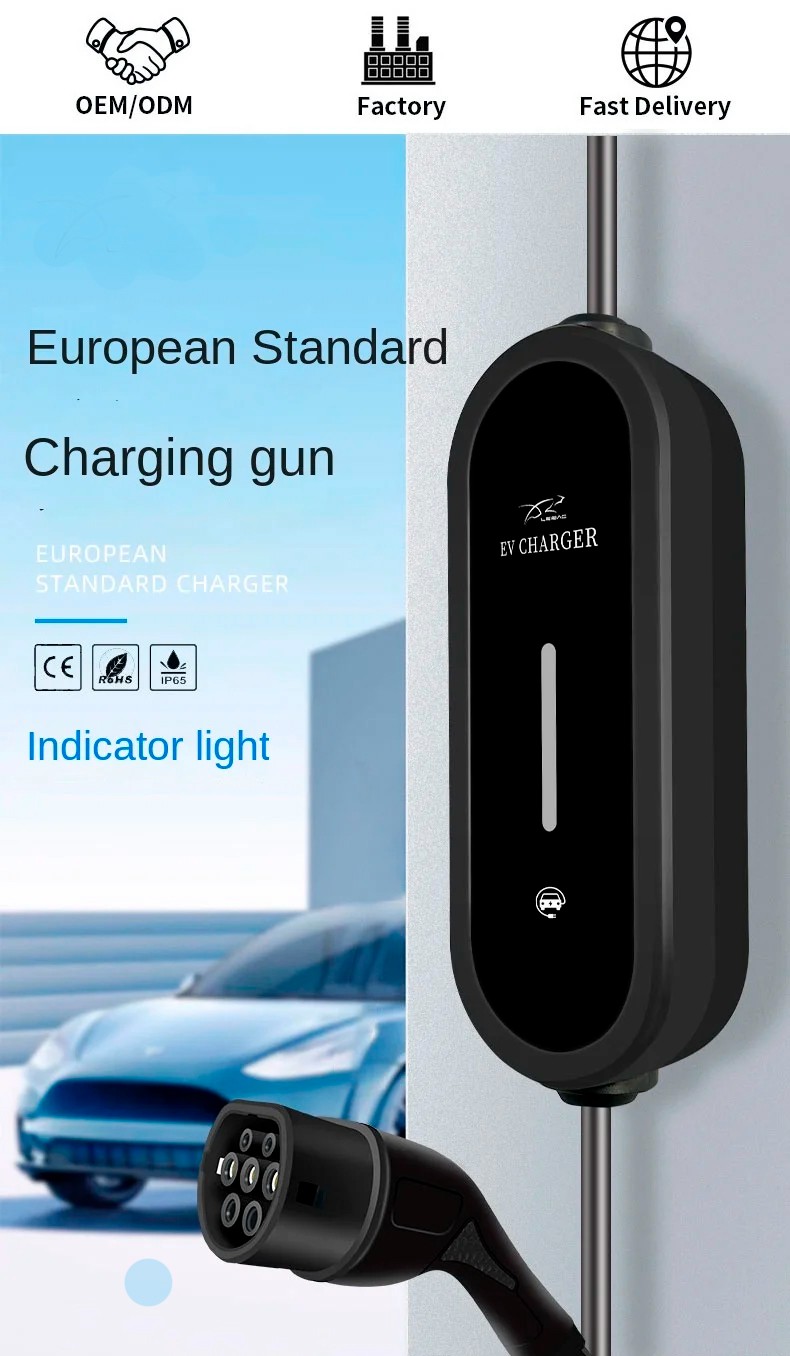

New Energy Home Use Mobile 16a /32a Ev Portable Power Station Charge For Electric Car
1, portable AC car charger, charging can be carried with the car.
2, 1.26 inch LCD display, human-machine communication interface is more comprehensive.
3, numerical screen display, display the charging gun real-time charging related basic data.
4, the current gear adjustment function, appointment timing charging function.

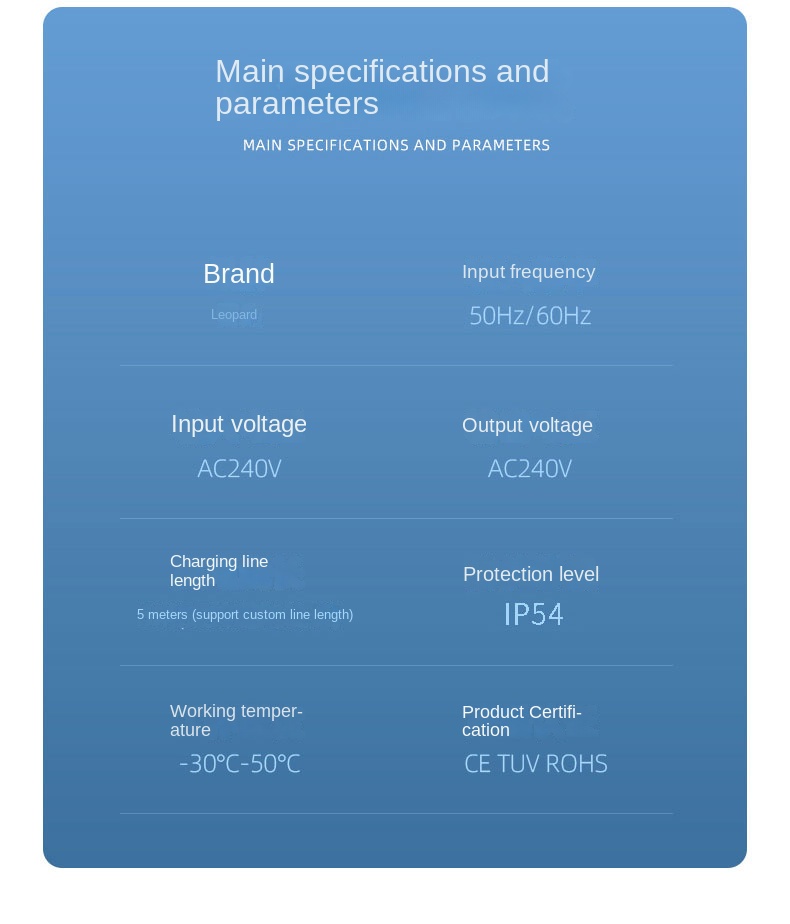

| Power plug | 16A Euro plug | |||
| Appearance structure | Model | Plug and charge/Scheduled charging/current regulation | ||
| Enclosure | Charging gun-Control boxPC9330 | |||
| Size | Charging Gun 220*65*50mm/Control Box 220*80*45mm[H*W*D] | |||
| Installation Method | Floor-mounted/Wall-Mounted | |||
| Install Components | Wall mounting screw fittings | |||
| Power Direction | Input(Up)&Output(Down) | |||
| Equipment weight | About 2KG | |||
| Cable Size | 8AWGx2C+10AWG+18AWG | |||
| Cable Length | 5 meters [Support custom line length] | |||
| Input Voltage | AC240V 380V | |||
| Input Frequency | 50Hz/60Hz | |||
| Electrical index | Max Power | 3.5KW 7kw 11kw | ||
| Standby power | 3w | |||
| Output Current | 16A/32A | |||
| Output voltage | AC240V 380V | |||
| Applicable scene | Indoor or Outdoor | |||
| Work Humidity | 5%~95%(non-condensing) | |||
| Environment index | Work Temperature | -30℃~+50℃ | ||
| Work Altitude | <2000M | |||
| Protection Class | Charging Gun IP65/Control Box IP54 | |||
| Cooling Method | Natural Cooling | |||
| Standard | GB/T | |||
| Flammability rating | UL94 V—0 | |||
| Certificate | TUV 、 CE 、 RoHS 、UKCA | |||
| Interface | LED indicator | |||
| Functional design | Communication | / | ||
| Packaging specification | Box gauge / weight | L*W*H:380*380*100mm [2.8KG] | ||
| Safety design | Under voltage protection, over voltage protection, overload protection, over current protection, over temperature protection,leakage protection, grounding protection, lightning protection, static protection, flame retardant protection | |||
